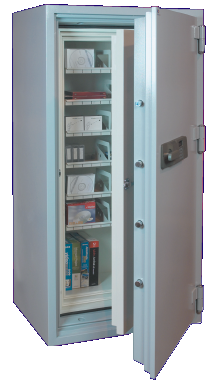

SecureLine Secure Data Office Model - 170E SecureLine Security Products
SecureLine Secure Data Office Model - 120E

Secure Data Office - for fire protection of data media

Ever thought about what would happen if you had a fire and lost all of your computer data? Statistics show that more than 80% of all companies that lose their computer data are out of business in three months. The answer is to protect your valuable data media with the Secure Data Office.

Styled specifically for office environments, the Secure Data Office is designed to offer 120 minutes of fire protection for your data media.

Model

The Secure Data Office is available in four models. Each model is equipped with a fire insert to safely store data media. Additionally a 'Combi' model is available which combines the storage of paper documents and data media.

Locking

The safes are equipped with an electronic security lock with LCD display as standard. In addition to the normal user code (4-16 digits), the lock provides a master code, log event and anti-spy function.

Certification

The Secure Data Office range carries the 120 Diskette label according to NT Fire 017. This means that your data media is protected even after being subjected to a fire lasting two hours. Due to the insulated walls and special fire insert the internal temperature will not rise above 52°C. The Combi-version offers 120 Paper label and 60 Diskette label, both according NT Fire 017.
Additional features
All safes are equipped with extensible drawers to store data media, such as CD/DVD's, backup tapes, etc. The insert itself is equipped with a high quality latch handle which offers easy opening of the inner compartment and a secure closure. The compartment latch and hinge are in chromium finish.
Design
The Secure Data Office range will complement any user environment and is supplied in a modern light grey finish.

To learn more about fire tests, click here......

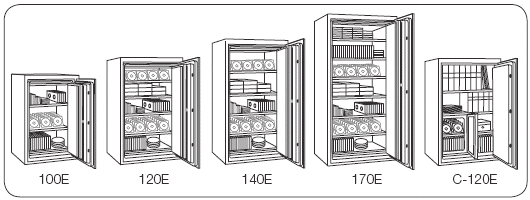

SecureLine Secure Data Office Range Diagram
SecureLine Secure Data Office - 120 Diskette
ModelSDA-100ESDA-120ESDA-140ESDA-170E
Dimensions (mm)
External Height1000120014001700
External Width600700700800
External Depth535635635635
Internal Height64581510151315
Internal Width315400400500
Internal Depth200300300300
Internal Volume (litres)4198122198
Weight (kgs)251340416601
No. Shelf4568
Capacity Guide
CD Rom/DVD 5 mm case1327208641488
CD Rom/DVD 10 mm case66360432744

SecureLine Secure Data Office - Combi - 120 Paper + 60 Diskette
ModelSDC-120E
Dimensions (mm)
External Height1200
External Width700
External Depth635

Internal Height 120 Paper*
Internal Width 120 Paper*
Internal Depth 120 Paper*
Internal Volume 120 Paper (litres)*
No. Shelf 120 Paper2

Internal Height 60 Diskette*
Internal Width 60 Diskette*
Internal Depth 60 Diskette*
Internal Volume 60 Diskette (litres)*
No. Shelf 60 Diskette1

Weight (kgs)*
Capacity Guide
CD Rom/DVD 5 mm case*
CD Rom/DVD 10 mm case*
* Correct information not available at this time. An update will follow asap.


Measurements and weights are supplied by the manufacturer. By virtue of The Trade Descriptions Act 1968, all must necessarily be considered to be approximate.
