Rosengrens MultiData CabinetRosengrens Safes

Rosengrens MultiData Cabinets

MultiData safes meet the environmental demands of all data media. They offer you maximum security against fire, heat, humidity, smoke gases, and also protect against magnetism.

The MultiData series has been tested and certified according to VDMA 24991 class S60 DIS and S120 DIS. This means that data media stored in a MultiData are legible even after being subjected to a major fire for 60 and 120 minutes respectively.

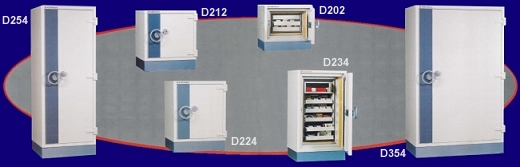

The MultiData is available in 6 sizes and has a modern design which complements any office environment.

All fittings are optional and can be ordered in the first instance or after the safe has been delivered. This way you can accessorise your safe as and when you need to.

The MultiData Range

The fittings can easily be adapted to various types of data media from diskettes and CD-ROM discs to hard discs. The flexible fittings enable you to reach everywhere in the safe, including the back.

The MultiData has several innovative features. One is the door. The door closes the same as a car door, slam it shut and it is instantly sealed with no play at all, obtaining full fire protection.
Another innovation is a new perforation technology to improve fire safety even further.

There is no standard version of lock on the MultiData, it can be supplied with key locks, combination locks, electronic locks or a combination of locks.
If you need to control and register all usage, use RCD - Rosengrens electronic control system.

All models are prepared for dual locking and come with high quality tested locks.

To learn more about fire tests, click here......


Rosengrens MultiData Cabinets
Data and Dimensions (mm)
ModelExternal
  HWD
Internal
HWD
Weight
(kg)
Volume
(litres)
Fire Class
VDMA
D20268078062023248132523536S60DIS
D21288078062043248132530568S60DIS
D224103078062058248132534091S120DIS
D2341380780620932481325455146S120DIS
D25420807806201632481325660255S120DIS
D354208012606201632961325--*
* to be updated

Optional Internal Fittings

Single Shelf

Shelf

Extensible Shelf

Extensible Shelf

Extensible Flexible Shelf

Extensible Flexible Shelf.

Lockable Compartment

Lockable compartment

Double compartment for model D354 only

Double compartment for model D354 only


Maximum storage capacity of data media
Type of data mediaTotal per shelfTotal number of datamedia per model
  D202D212D224D234D254D354
Diskette 3½"384768153619203072576013080
DAT Cassette145290580870145026105760
Video 8 tape cassette631261893155049452025
DC 200010821643254086416203690
SyQuest 3½"136272544680108820404215
Zip Drive11022044055088016503555
Jaz Drive48481441922885281100
CD-ROM Disc10410420841662411442156

Measurements and weights are supplied by the manufacturer. By virtue of The Trade Descriptions Act 1968, all must necessarily be considered to be approximate.
