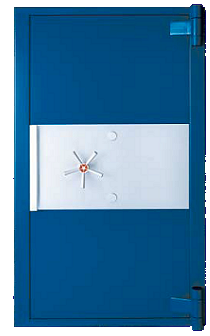

Rosengrens Strongroom Door, grade V tested and approved by the German VdS Test Institute in accordance with the CEN/Euro burglary standard.
CEN/Eurotest - High quality
As part of the ongoing process to have common European standards, safes and strongroom doors test standards have been set. Strongroom door approvals comprise grade V through XIII.
To comply with the CEN/European standard, ISO 9000 quality approval is a prerequisite and the Rosengrens factories comply with this requirement.
Attractive design
The RSD V can be finished in a range of colours with a decorative aluminium facia to complement the vault area.
As an alternative the front of the door can be finished in stainless steel.
Lock alternatives
For grade V doors two class B(2) approved high security locks are required. For RSD V the following alternatives are available:
Two key locks
Two combination locks
Two electronic high security locks
A combination of above locks.
The key lock, Rosengrens RKL-10, can easily be reset to accept a new key bit if a key is lost or there is a change of staff. The electronic lock has double circuits for highest reliability and is very easy to operate. Other features are, e.g. several user codes, time lock, time delayed opening etc.
Solid frame - High security
The solid frame construction increases the security of the door and enables installation in wall thicknesses up to 550 mm.
The frame is prepared for Rosengrens grille gates, with both key and electronic locks:
RVG: Grille gate with attractive aluminium frame with sheets of engraved acrylic glass.
RGS: Grille gate with horizontal steel bars.
Options
Frame for 250-350 mm wall - basic door
Frame for 350-450 mm wall
Frame for 450-550 mm wall
Stainless steel front finish
Water protection
Emergency internal release handle (no label).
Door operated light switch
Alarm kit according to VdS requirements.
RSD V Dimensions
Overall width with door closed
1600 mm
Overall width with door at 90°
2140 mm
Door width
1235 mm
Day opening (usable width)
900 mm
Overall height
2280 mm
Door height
2080 mm
Day opening (usable height)
1960 mm
Approximate total weight
1500 kgs
Measurements and weights are supplied by the manufacturer. By virtue of The Trade Descriptions Act 1968, all must necessarily be considered to be approximate.
