Phoenix Condor 20 Series
Phoenix Safes

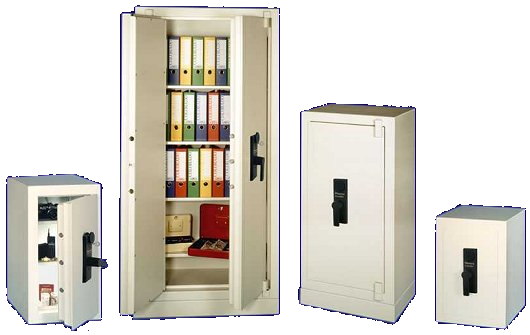

Phoenix Condor 20 Series

Security and fire safe for high risk commercial or banking institutions.

This range of safes has been designed to provide protection for cash risks upto £17,500 or valuables risks of upto £175,000 and carries the Euro Grade 2 Standard.
Designed to provide a high level of fire protection in addition to its attack resistant features.
The unique design of the barrier material protects against attack from drilling, cutting and oxyacetylene.
Fitted with a VdS Class 1 high security double bitted keylock as standard. High security electronic locking available as an optional extra on all models.
All models are prepared for basefixing, bolts supplied.
All models are single door with the exception of Size 4 and Size 5 which are double door safes.

Suggested overnight cash insurance rating of £17,500

To learn more about cash ratings, click here......

NB: Insurance ratings should be verified by your insurance company.

BODY: The inner and outer bodies are constructed from 3.1mm thick high grade steel. This steel is electrically welded together to form one solid unit. The cavity between the inner and outer bodies contains a unique, advanced anti-penetration and fire resisting material with a total protective thickness of 100mm.

DOOR: The door is constructed of 6mm solid plate with 6mm drill resisting plate protecting the lock area. A steel pan with fire resisting material is fitted to the back of the door giving greater protection against fire.

BOLTWORK: All sizes have 3-way moving espagnolette boltwork with 30mm bolts securing into the top and bottom door frame. The leading edge of the door has 2 x 30mm bolts securing into the frame. In addition, the two hinge dog bolts at the rear give added strength and provide a clean cut, modern appearance disguising its strength.

LOCKING: The standard locking is a high quality double bitted VdS Class 1 keylock with keys supplied in duplicate. Alternatively the safe can be fitted with a high security digital lock as an optional extra.

FINISH: All safes are finished in RAL 9002 durable white textured finish.


Phoenix Condor 20 Series
ModelSize 1Size 2Size 3Size 4Size 5
External (mm)
Height7801200150010001850
Width6006008001200930
Depth460510510510570
Internal (mm)
Height660108013808801730
Width4804806801080810
Depth300350350350410
Capacity (litres)90181328332574
Weight (kgs)180330400390540
Shelves as standard22324
Door Swing (mm)530470670535400


Measurements and weights are supplied by the manufacturer. By virtue of The Trade Descriptions Act 1968, all must necessarily be considered to be approximate.
