Chubb Safes Profile Series Vertical Fire FileChubb Safes

Chubb Safes Profile Series Vertical Fire File Cabinets

As with all Chubb Safes fire protection cabinets, the effectiveness of the Profile Series has been proven in many office situations around the world.
In addition to Chubb Safes own stringent fire testing, Profile Fire File Cabinets are independantly tested by the Underwriters Laboratory in Chicago and awarded Class 350, 2 hour label for protecting paper from fire.

A 1 hour fire tested version is also available, please contact us for details.

To learn more about fire tests, click here......

Available in two, three or four drawer sizes, these robust filing cabinets contain a minimum of 38mm of fire proofing all round, with intumescent seals each drawer to close up tolerances in the event of fire. Fire resistant bulkheads between each drawer ensure that they are individually insulated.
A shock absorbing plinth provides maximum impact absorbtion in the case of floor collapse.

Heavy duty drawer slides are fully 'life-tested' and a day catch fitted to each drawer ensures that they stay shut even if the cabinet is unlocked during a fire. Drawers are designed to ensure smooth operation.
Each drawer is individually protected from fire. Even if one of the drawers is accidentally left open, the other closed drawers are still protected by the built-in, fire resistant partitions.

The standard version of the cabinet has a Chubb Ava key lock, fitted to the top drawer for securing all drawers.
Key lock as standard.

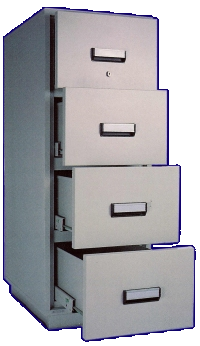

Chubb Safes Profile Series Vertical Fire File Cabinet
Dimensions (mm)
Model NumberProfile
2HR4DR
Profile
2HR3DR
Profile
2HR2DR
Number of Drawers432
External
Height15041160817
Width551551551
Depth780780780
Internal Drawer Dimensions
Height268268268
Width387387387
Depth600600600
Cabinet Capacity (litres)249187124
Approx. nett weight (kg)385290200

Measurements and weights are supplied by the manufacturer. By virtue of The Trade Descriptions Act 1968, all must necessarily be considered to be approximate.
