Phoenix Firechief 1610 Series

Phoenix Safes

Phoenix Firechief 1610 Series

When fire strikes, it's not just the premises it destroys, it will also engulf all the essential company paperwork stored inside them.

Unfortunately, the failure to preserve these vital records, only too often, destroys the company itself! In spite of the computer revolution, vast amounts of important data and records are still held on paper.

With an increase in fire hazards from electrical equipment, insurance statistics indicate that as many as 35% of companies will cease to exist within the first year of a major fire. It is therefore essential for survival that all your records are protected. From debtor records to payroll and pension fund data, from customer orders to product designs, all valuables and legal documents, deeds and contracts require protection. Don't forget by law you are required to protect hazardous chemicals and paints from theft and fire.

The answer to all these problems is the Phoenix Firechief 1610 Series.

Fire Resistant Security Cupboards

The combination of state of the art insulation materials and innovative design has led to the developement of the Phoenix Firechief 1610 Series. These cupboards are manufactured to the German VDMA 24992 construction standard.

Available in three sizes, these cupboards are robustly constructed with a 60mm fire gap between the inner and outer layers. This gap is filled with Phoenix's specially developed system of multi-layered insulation materials to ensure the survival of your documentation.

The cupboards are fitted as standard with heavy duty, three way Espagnolette boltwork and locked by a high security, double bitted keylock. An optional electronic lock can also be factory fitted. All models are equipped with variable height shelves for box files. Lateral rails for suspended filing are available as an optional extra.

  • Provides 30 minutes fire protection for paper records.
  • High security espagnolette boltwork provides great strength and attach resistance.
  • Fitted with a high security double bitted keylock with optional electronic locking available on all models.
  • Low weight and floor loading is achieved by use of advanced fire resistant materials.

Suggested overnight cash insurance rating of £2000 or £20,000 for valuables.

To learn more about cash ratings, click here......

To learn more about fire tests, click here......

NB: Insurance ratings should be verified by your insurance company.

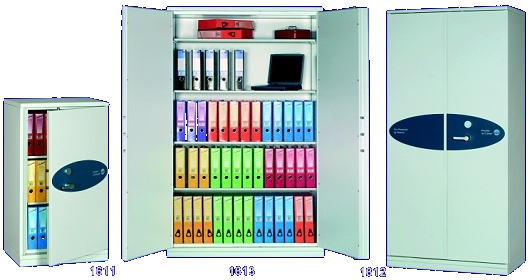

 Phoenix Firechief 1610 Series Dimensions
 Model161116121613
 External (mm)
 Height120018501850
 Width6709301200
 Depth510510510
 Internal (mm)
 Height112517301730
 Width5708301100
 Depth400400400

 Weight (kgs)105182223
 Capacity (litres)257574761
 Door Swing (mm)690415550
 No. of shelves344


Measurements and weights are supplied by the manufacturer. By virtue of The Trade Descriptions Act 1968, all must necessarily be considered to be approximate.
